Description

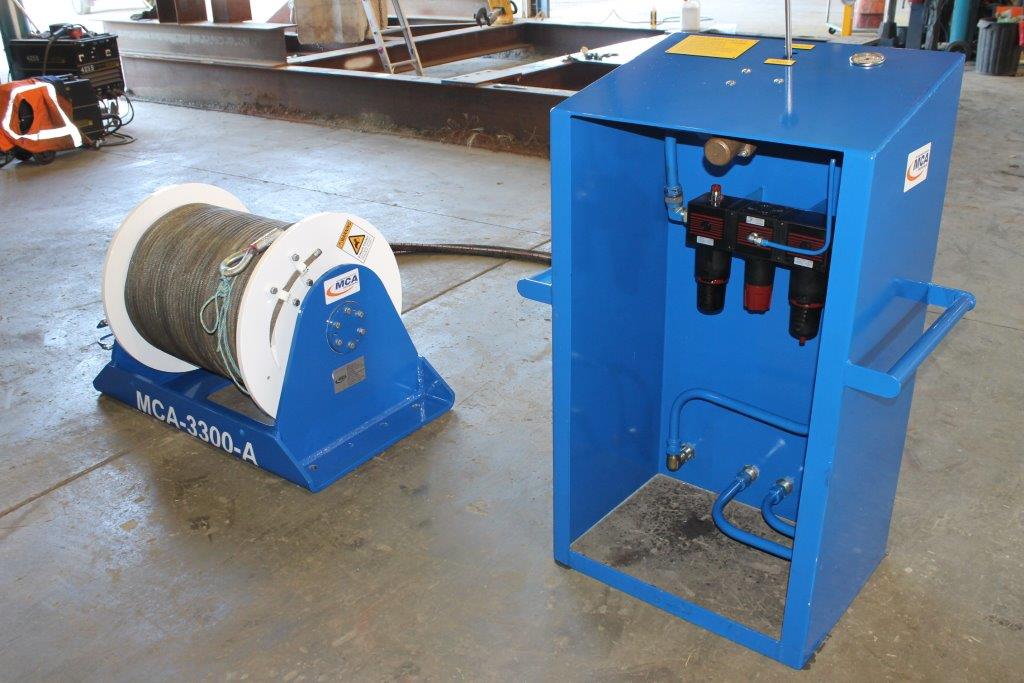

Designed to Australian Standards, the Air Winch with 300m rope capacity is the optimal solution for construction, mining and marine applications, built specifically for performance and reliability.

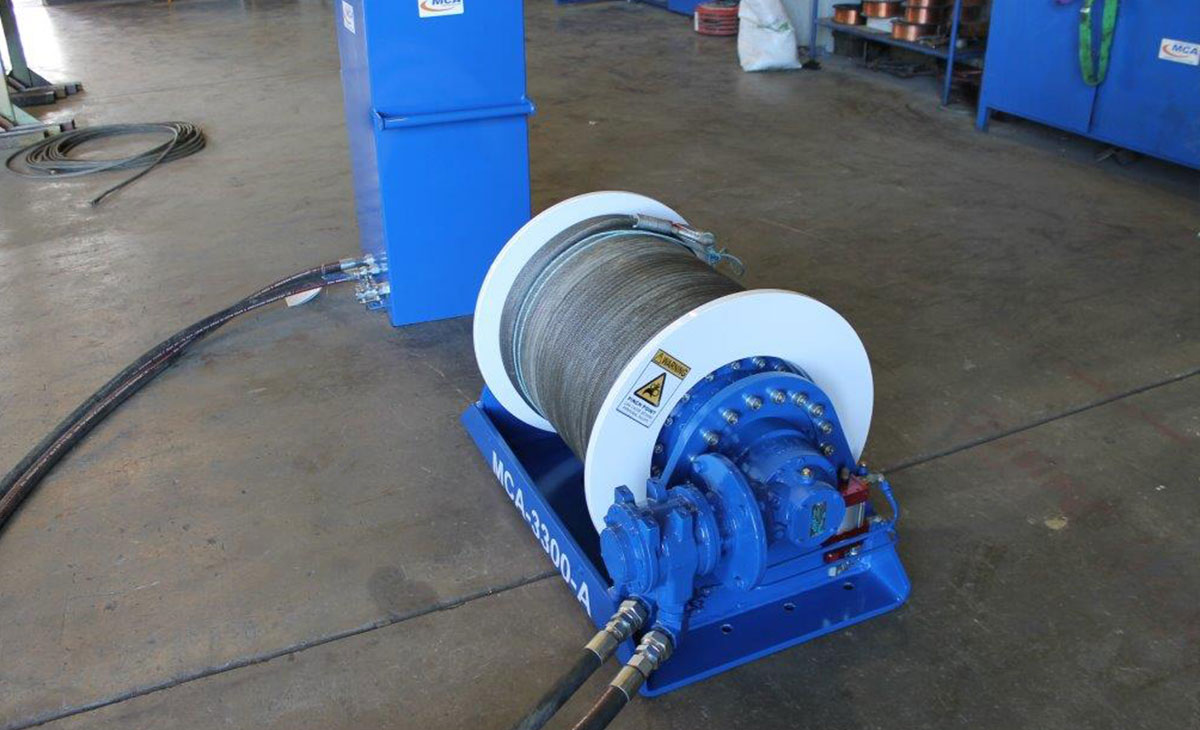

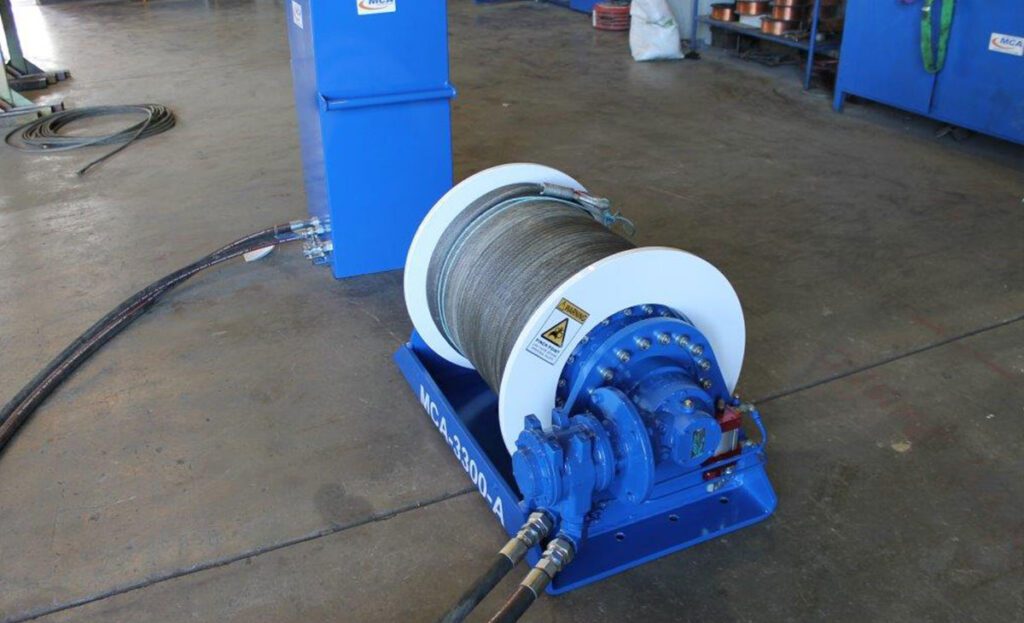

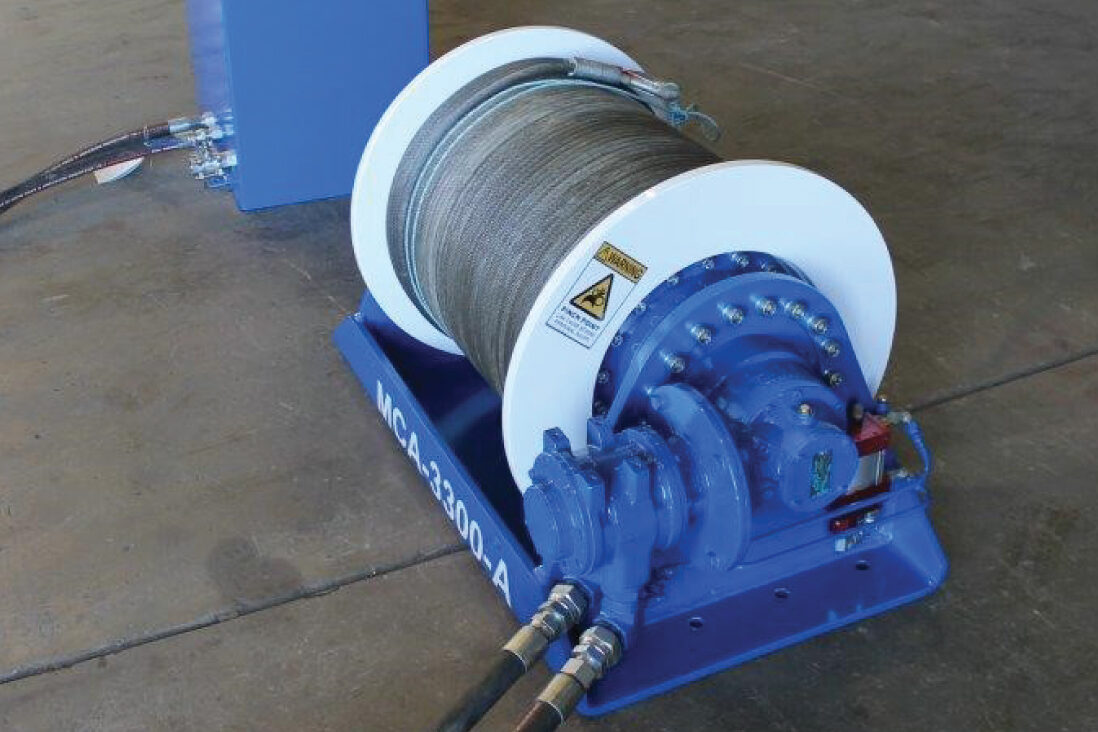

Underground mining depends critically on the capability, reliability and safety of the hoisting equipment. Designed and manufactured by MCA in Australia in accordance with Australian Standards, the Air Winch’s winch drum is driven by an air motor via a 90 degree reduction gear box to a planetary drum mounted winch drive that is powered by a 10kW air motor.

The Air Winch is designed to be operated in lifting and lowering or pulling of materials only, and is not to be used for man riding.

Specifications
DrumRopeWinder
Diameter 406mm16mm (max)n/a
Width/Length650mm300m (max)n/a
Number of Layersn/an/a5
Brake Torquen/an/a397Nm Integral
Speedn/an/a10 m/Min @ min 160 L/SP
Air Requirementn/an/a160L per min
Motor Powern/an/a10kW
Talk to us today

Available for Sale or Hire, along with a range of other sizes and capabilities. Contact us.
